SCANVAEGT 3800 FLOOR SCALE

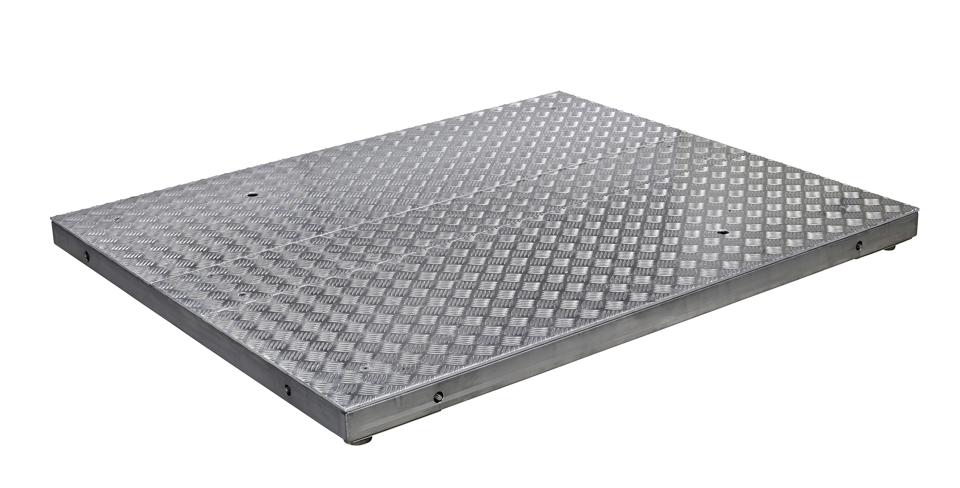

Robust floor scale for all weighing jobs

The Scanvaegt 3800 floor scales are made of stainless steel and with weighing capacities of up to 3,000 kg they handle most weighing jobs in both dry and wet production areas.

The scales have the standard dimension 1,500x1,250 mm, but are also available in other dimensions upon request.

Construction is fully welded (no points in which bacteria collect)
All cables are inside the construction to avoid dirt traps and to make cleaning easy
The pit frames and access ramps are made of AISI 304 stainless steel
The base frame and load plate are made of AISI 304 stainless steel
The 4 hermetically sealed (fully welded) stainless steel load cells have an IP 67 protection rating
Fully hosable, enabling efficient, easy cleaning

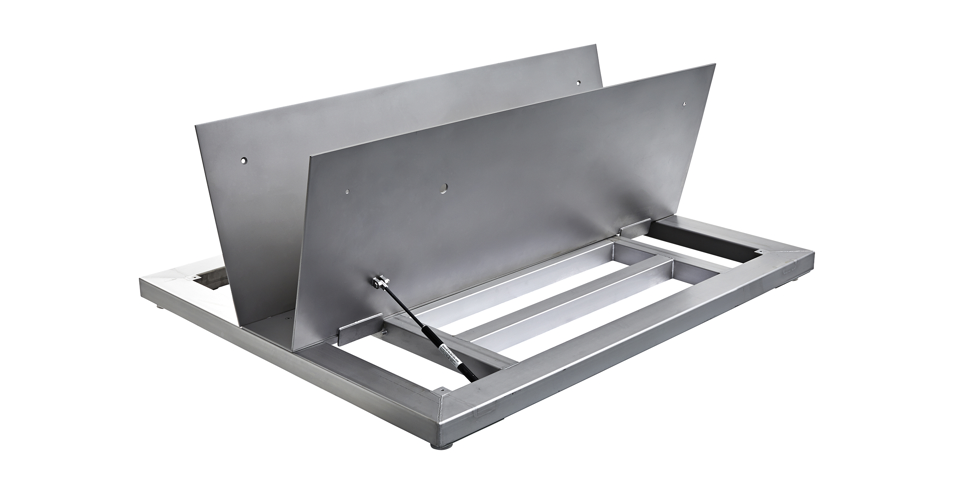

The 3800 floor scale is available with a with a split-load plate, equipped with a gas spring. It can be opened by just one person, which facilitates cleaning, inspection and repairs

The floor scales can be placed on the floor or installed in a pit.

Options:

Overload protection is available for scales that are installed in a pit. This absorbs sudden rough shock overloads.
Access ramps for easy access to floor scales that are not installed in a pit.
